Product Summary
The X0405MF is a 4A SCR. The device is suitable for all applications where the available gate current is limited, such as capacitive discharge ignitions, motor control in kitchen aids, overvoltage crowbar protection in low power supplies.
Parametrics
X0405MF absolute maximum ratings: (1)RMS on-state current (180° conduction angle): 4 A; (2)Average on-state current (180° conduction angle): 1.35 A; (3)Peak gate current: 1.2 A; (4)Average gate power dissipation: 0.2 W; (5)Storage Temperature Range: -40 to +150°C; (6)Operating junction temperature range: -40 to +125°C.
Features
X0405MF features: (1)High Accuracy: 0.075% Max; (2)Low Drift: 10ppm/°C Max; (3)Industrial Temperature Range SO-8 Package; (4)Low Supply Current: 270uA Max; (5)Minimum Output Current: 20mA; (6)No Output Capacitor Required; (7)Reverse Battery Protection; (8)Minimum Input/Output Differential: 0.9V; (9)Available in Small MSOP Package.

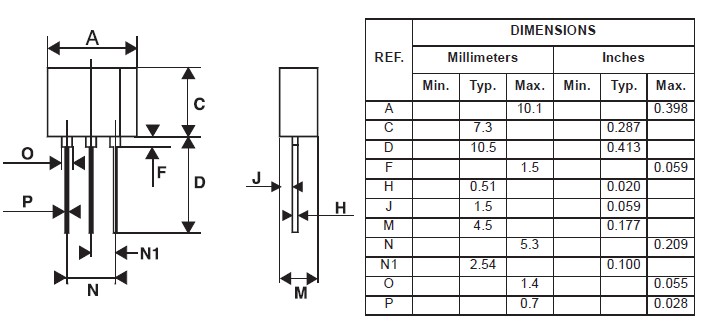

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

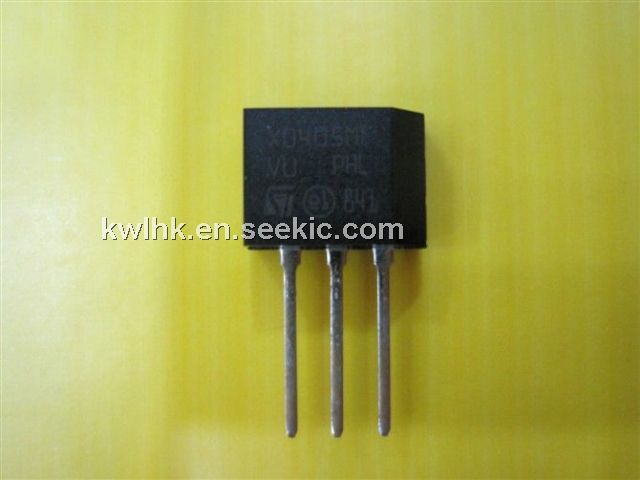

![]() X0405MF |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() X0405MF 1AA2 |
![]() STMicroelectronics |
![]() SCRs 4.0 Amp 600 Volt |
![]() Data Sheet |
![]()
|
|
